With 5 receivers and 5 transmitters at
Mt.Saddleback a lot
has been done with the limited cabinet and
tower space.
The site is mains powered with 12V battery backup.
Voice repeater equipment
- VK6RMS 2M FM828 in rack mounting box 147.850 RX 147.250 TX
- Tait UHF link transceiver
- 6 cavity 2M duplexer
- Single cavity 2M (147.850) filter to reduce pager &
packet interference
- Single cavity UHF filter for 438.525 MHz WIA news link
receiver
Packet equipment
- FM880 148.850 MHz packet
digipeater
- 2M bandpass cavity filter
(148.850)
- 430.050 MHz UHF
transceiver for packet link to Katanning
- 440.050 MHz UHF
transceiver for packet link to Perth
Antennas
- Two GST-1 dual band
2M/70CM omni directional.
Power supplies
- 12V 20 amp regulated supply (float charges batteries)

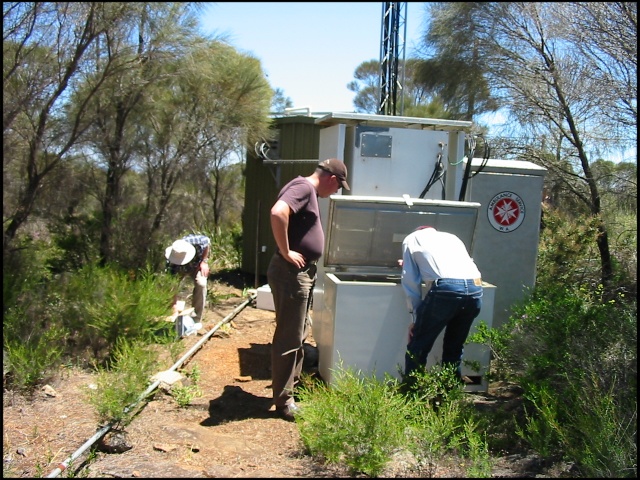

- 300 AH batteries inside fridge cabinet behind main equipmet
cabinet
|
