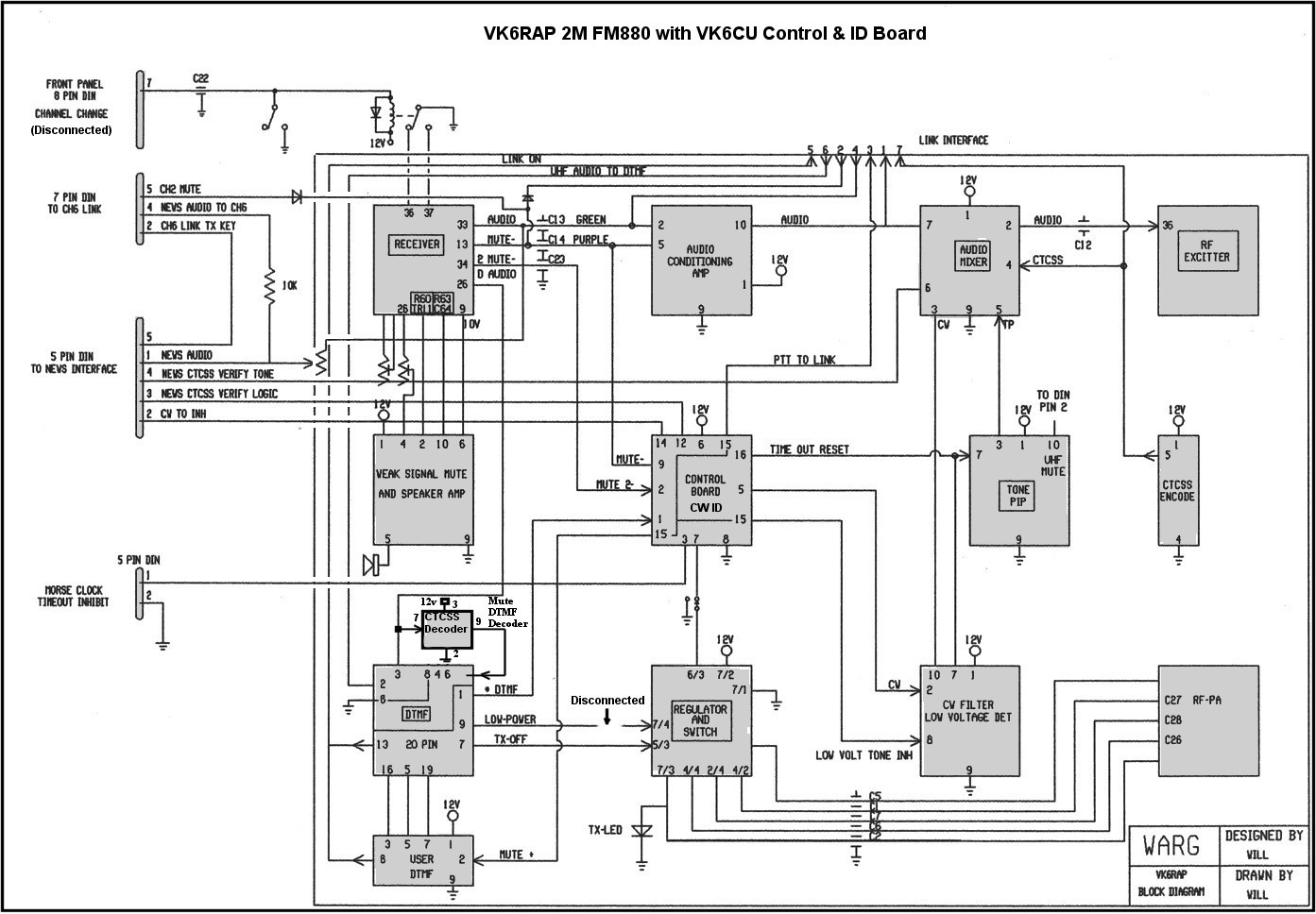

VK6RAP 2M FM880 Repeater Block Diagram

VK6RAP 2M is one of the earlier FM880 repeaters and has the VK6CU control board and CW ident. Later versions used the URC101 control board. There are considerable additions to this repeater due to the WIA news requirements such as time out and CW ident inhibit along with linking interface to the Mt.William link transmitter and the UHF (VK6RUF) news link output.

Home

VK6RAP 2M Block Diagram
