VK6RVP Circuits


The Vic Park 70cm repeater is a Stanilite KL (also known as a Unilab and ADI at various times).

The repeater was an 850MHz analog mobile phone base station that was modified by Tony VK6YAG, removing the frequency doubler in the receiver & exciter units and replacing the 850MHz PA with a Philips 25w UHF PA.

The controller board is a NHRC-u (NHRC Micro).
VK6RVP pin outs

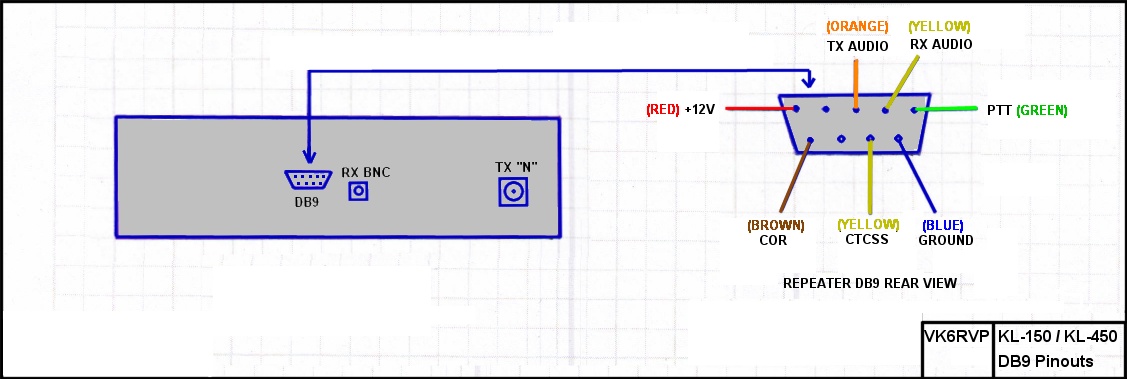

DB9 Pin outs of VK6RVP 70cm Repeater

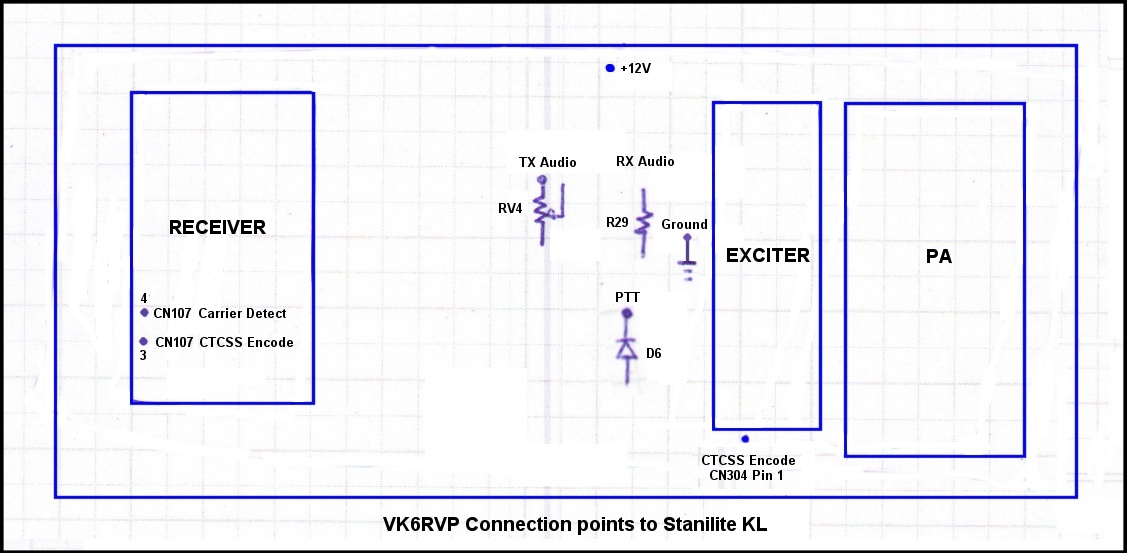

VK6RVP connection points
