VK6RLM Circuit Diagrams

These circuit diagrams relate to the original FM880 VK6RLM and not the new Vertex VK6RLM


The original VK6RLM had several inovations added to it over the years. The repeater was interfaced with....

A 29.120 MHz FM gateway
A 40 and 80 metre SSB gateway
And was linked to VK6RUF for the WARG Sunday net.

The circuits below are included for historical and possible technical additions to future repeaters.

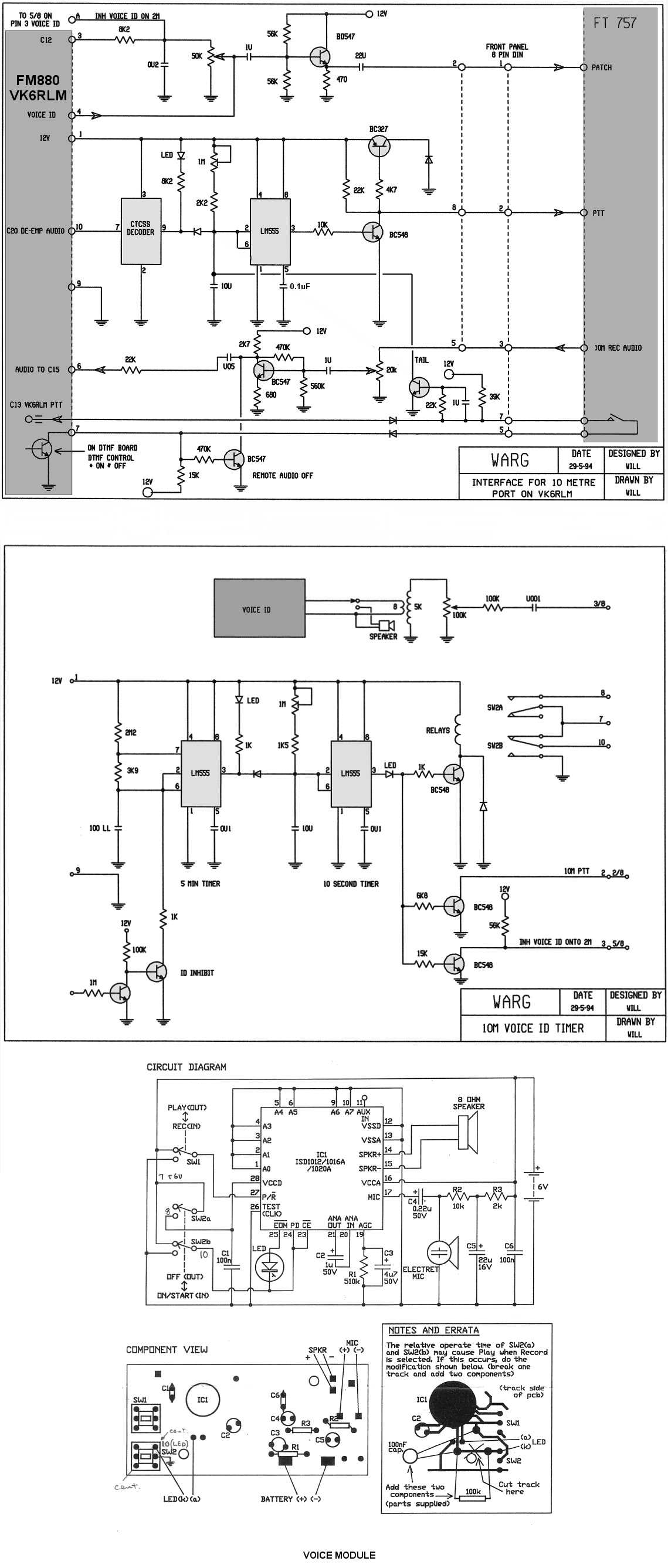

VK6RLM to 29.120 MHz Gateway Interface a Yaesu FT 757 HF Transceiver
VK6RLM 29MHz gateway interface
