Rottnest mark 2

VK6ROT or VK6RAT....?


Rottnest Island, located 20km off the coast from Fremantle, is a holiday destination for many and WARG had for a long time considered it as a place to locate a 2 metre repeater. At the end of 1990 it almost happened.

Rottnest Sun set

Radio mast on left - wind turbine - light house

With the large Tic Hill and Busselton repeater sites long established, Rottnest could be an easy project it was thought. The FM880 design had been proven and would be the chosen repeater to go in at Rottnest.

The interesting aspect was that there was a 100' guyed tower already on a high point in the centre of the Island, that had been used for wind speed and direction information by the nearby large wind turbine. No other equipment was on the tower at all.

The Rottnest Authorities were asked for permission to use the tower and they accepted our application to do so. We even obtained permission to use 240 volt power from a nearby shed.

Testing the site

With access to the site, a coverage test was the first step. Rather than install VK6REE with all the requirements of filters etc a simpler idea was to use a dual band radio operating in repeater mode. Amateurs could cycle and walk around the Island using 2 metres or 70 cm to communicate via the cross band repeater. This set up could also be used to link to VK6RUF and then those on the Island could talk to other amateurs on the mainland. Both modes of operation were used and the Island coverage was given a good trial.

The coverage was excellent, even as far out at West End on the beach below the cliffs.

The design

Rottnest is isolated in terms of you just can't drive to the site. It requires a ferry of boat ride from the mainland to do the installation and future maintenance. Hence the design had to be simple and easy all round.

After much discussion the following design was decided on.....

No shed to house the repeater.
Repeater to be housed on the tower.
Low voltage (12v) power run from the shed where 240v power was available.
Two antenna split design.

The split antenna design should not require any cavities but if required they could also be mounted on the tower. By mounting all equipment on the tower vandalism would be made more difficult.

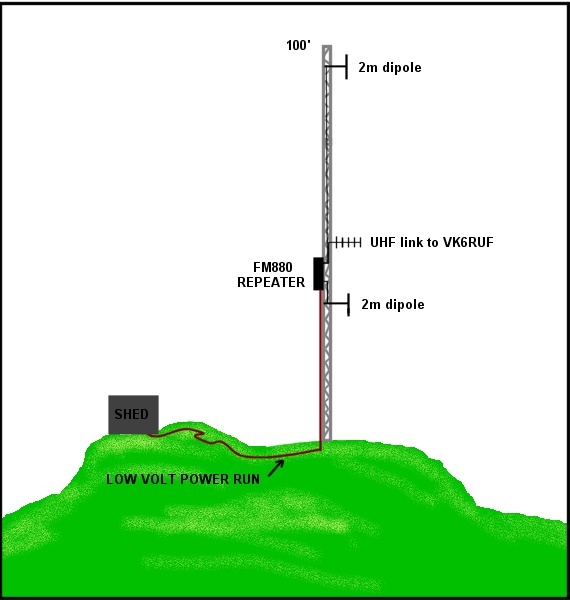

Rottnest repeater design

Rottnest repeater site design

Stage one Rottnest installation

WARG decided to install a repeater on Rottnest. The basic concept was decided, with the repeater mounted on the mast and using a split antenna design, fabrication of the parts began. At this point an FM880 repeater was not finished but the housing and 2 metre dipoles were constructed. Coax cable was obtained as was a long run of heavy duty 3 core mains cable. Not to carry mains but the 12 volts from a power supply to be housed in the nearby shed.

All equipment had to be transported over one the ferry or Trish's (VK6QL) sail boat, Sea Flight, which sailed over from Fremantle, and carried all the heavy items.

Video of the installation of the repeater housing, antennas and tower work

The small pictures below are video frame grabs and as such of poor detail but at least they give you some idea of the work done at Rottnest. The video is available soon.

Sea Flight

Sea Flight, later to sail around the World by David, Trish's son.

On arrival all items had to be walked or transported to the hill on bicycle, a distance of 3 kilometers. There are no private cars allowed on Rottnest, so getting to and from the site, as beautiful as the walk or bike ride is was of concern for maintenance.

Cliff and Trish

Cliff VK6LZ & Trish VK6QL transporting power cable & 2 metre antennas

Climbing Rottnest hill

The last few hundred metres by foot up to the Rottnest tower.

It was decided to also link the Rottnest repeater to VK6RUF for a re-broadcast of the WIA news. The initial design was for a one way only link that would transmit the news onto the Rottnest repeater and to later add the link back to VK6RUF for two way linking.

Fitting the repeater housing

Installing the UHF link antenna to VK6RUF Roleystone

There was much thought put into the design of the repeater housing. The FM880 would be placed inside the box from below into a small rack frame. The most important issues were keeping the rain out and reflecting as much heat as possible. During summer the box would be in direct sunlight. Air vents were on either side with a over hang to prevent rain getting in. The box is still there today as are the antennas.

The repeater housing

Installing repeater housing - Joe VK6ZTN left and Trevor VK6MS

box installation

Joe and Trevor still working away

The finished installation Rottnest

The finished tower work, 2 two metre antennas - UHF beam - repeater housing

The installation required two days and Trevor VK6MS changed the guy wires while others dug in the low voltage power cable from the base of the tower to the shed. Both jobs were difficult, Trevor did all the tower work replacing all the guy wires, with some ground help, while the rest used shovels and pick axes to dig a trench through the limestone.

Cliff Rottnest

Cliff VK6LZ, hacking through the limestone for the cable run

Running the power cable

Glenn VK6ZGT.....Running the power cable

Running the low voltage power cable

Job finished

Job finished and it was coffee and cake...Rottnest

Site today

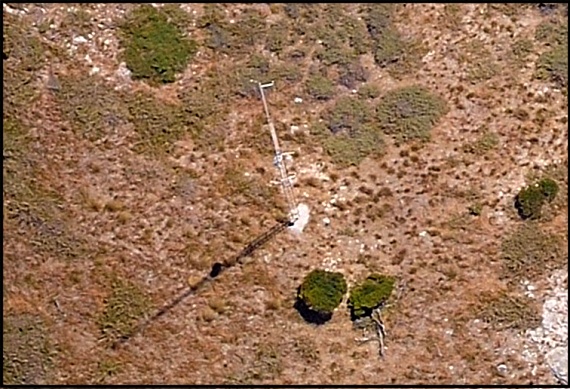

This is a receint photograph taken off the Nearmap web site..All looks to be there

Rottnest tower top

Top of Rottnest tower November 2010....Photograph John VK6UP

Rottnest tower box

Housing for Rottnest repeater November 2010....Photograph John VK6UP

Rottnest low antenna

Rottnest tower lower antenna below repeater housing...Photograph John VK6UP

So why was there no repeater installed at Rottnest...? Firstly the repeater was never built and secondly there was growing concern that the maintenance required could prove too difficult and too costly. If the repeater operated with little or no problems then it would have been sustainable but with repeater problems at other sites the enthusiasm diminished and some 20 years later there is still no repeater on Rottnest.

With new radio technology, a very reliable repeater could be installed at the site. It would have to be solar powered and perhaps run at a low power, say two watts from a Hamtronics exciter. Linked to Roleystone it would be a valuable repeater on the Holiday Island.
